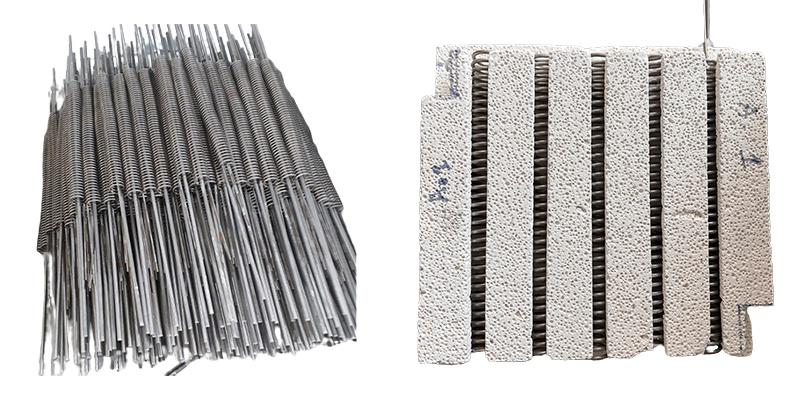

Coiled / Spiral Heating Elements

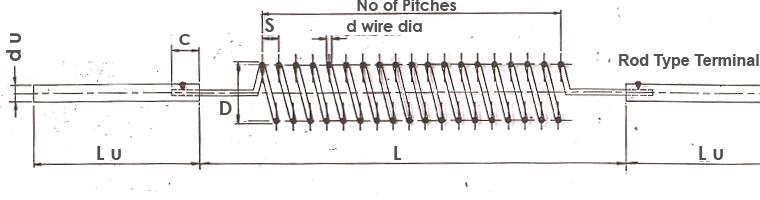

• By far the most commonly used heating element design comprising a round wire of resistance material FeCr Al or Ni Cr material. The design involves proper selection of the wire, coil diameter, coil pitch and watt loading of the element. Based on the application and installation the coil can be of single shank( spiral) , double shank or multi shank, suitably connected with the terminal rod usually of the same alloy or a lower grade of alloy , for a better homogeneity and better temperature withstanding properties.
• The coils could be supported in grooved refractrory or on ceramic tubes .
• Greater consideration is given on the proper support, furnace atmospheres and contaminations, and most importantly the radiation properties of the element together with the watt loading.
• Furnace elements manufactured at SS Envriothermal can be used for furnace temperatures between 50–1350°C (120–2460°F).
• We assist our clients:
  • in choosing suitable element material, element type, support system and insulation
  • by supplying complete heating elements ready for installation
  • with re-designing gas or oil-fired furnaces to electricity
  • The workshops of SS Envirothermal has developed considerable experience in manufacturing heating elements and can manufacture to any specifications.
  • Coiled Heaters manufactured by SS Envirothermal Technologies Pvt. Ltd. are highperformance heating elements designed for uniform heat generation in industrial furnaces and high-temperature applications. Fabricated using premium-grade resistance alloys, our coiled heaters deliver reliable thermal output, durability, and long operational life even under demanding industrial conditions.
  • Engineered for precision and efficiency, these heaters ensure stable resistance values and consistent temperature control across various industrial processes.

Key Features

• High Temperature Capability
• Uniform Heat Distribution
• Excellent Oxidation & Corrosion Resistance
• Long Service Life
• Energy Efficient Performance
• Customizable Design & Dimensions

Material Options

• Nichrome (NiCr) Alloys
• Kanthal (FeCrAl) Alloys
• Other high-resistance heating alloys as per requirement

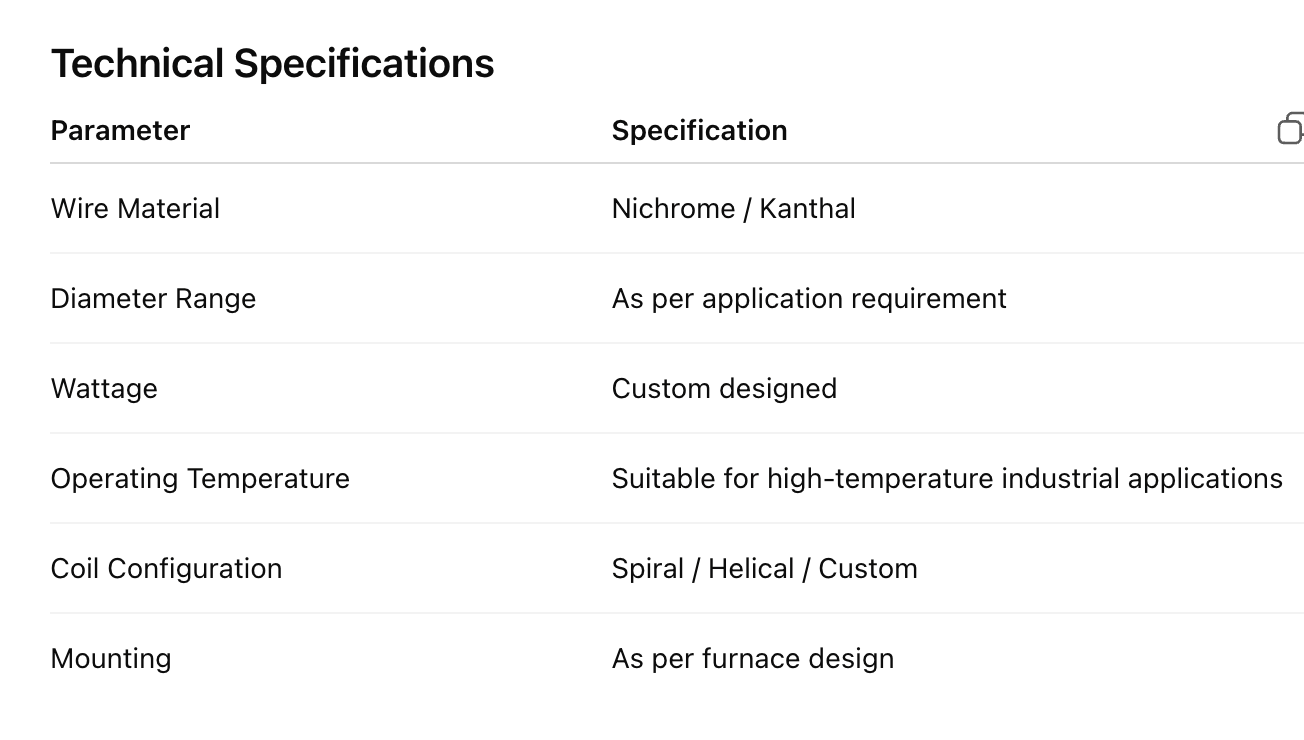

Specifications can be customized as per client drawings and technical requirements.

Applications

Our Coiled Heaters are widely used in:

• Industrial Furnaces
• Heat Treatment Plants
• Forging Industries
• Glass Manufacturing Units
• Ceramic Industries
• Industrial Ovens & Kilns

Manufacturing Advantage

At SS Envirothermal Technologies Pvt. Ltd., every coiled heater undergoes:

• Strict dimensional inspection
• Resistance value verification
• Material quality testing
• Performance consistency checks

Our advanced manufacturing process ensures reliable thermal output and extended product lifespan.

Custom Manufacturing Capability

We manufacture coiled heaters as per:

• Client technical drawings
• Required watt density
• Specific temperature range
• Furnace layout compatibility

Bulk supply and repeat orders are handled with consistent quality and on-time delivery.
